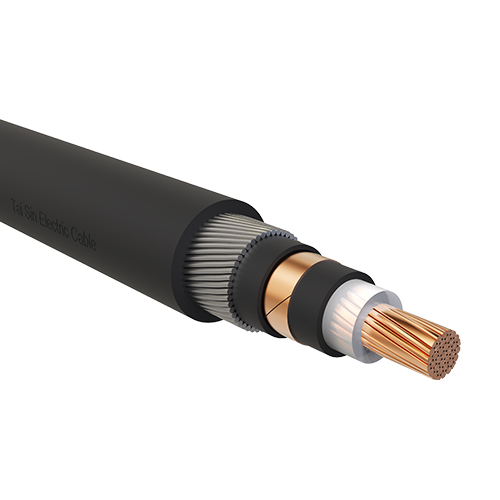

XCAP, CU / XLPE / PVC / CT / AWA / PVC, Single core, XLPE insulated, PVC bedded, Copper tape screened, PVC separation sheath, Aluminium wire armoured, PVC sheathed, 600/1000V cable - compliant with IEC60502-1
Construction
Conductor: Plain annealed copper, Class 2 stranded circular or compacted
Insulation: Cross-linked Polyethylene (XLPE) compound
Insulation colour: Natural
Beddings: Polyvinyl Chloride (PVC) compound type ST2
Bedding colour: Black
Screen: Copper tape
Separation sheath: Polyvinyl Chloride (PVC) compound type ST2
Separation sheath colour: Black
Armour: Aluminium Wire Armoured (AWA)
Outer sheath: Polyvinyl Chloride (PVC) compound type ST2
Outer sheath colour: Black
Electrical Characteristics
Operating voltage, U0 / U: 600/1000V
Operating temperature: -15°C to +90°C
Final short circuit temperature: 250°C
Test Voltage: 3.5kV for 5 minutes
Reference Standards
Design Specification: IEC60502-1
Conductor: IEC60228, BS EN60228
Flame retardancy: IEC60332-1, BS EN 60332-1
Installation Reference
Minimum bending radius (mm): 8 x cable overall diameter
Maximum pulling tension: 50N/mm²
