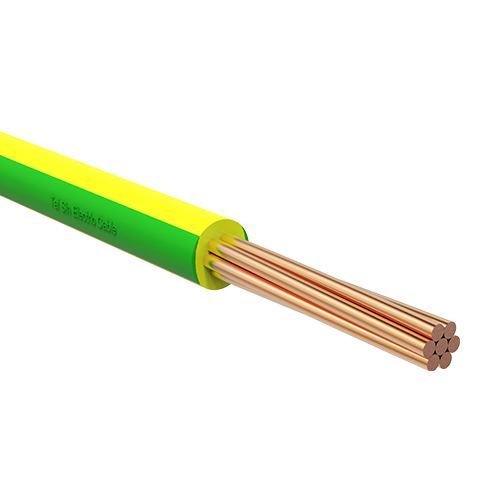

PVC, CU / PVC, Single core, PVC insulated, non-sheathed, 450/750V cable - compliant with SS358-3 / BS EN50525-2-31 / IEC60227-3
Construction
Conductor: Plain annealed copper, Class 2 stranded circular or compacted
Insulation: Polyvinyl Chloride (PVC) Compound Type PVC/C
Insulation colour: Black, Green/Yellow, Blue, White, Brown, Grey or Others
Electrical Characteristics
Operating voltage, U0/U: 450/750V
Operating temperature: -15°C to +70°C
Final short circuit temperature: 160°C (for cables ≤ 300mm²), 140°C (for cables > 300mm²)
Test Voltage: 2.5kV for 5 minutes
Reference Standards
Design Specification: SS358-3, BS EN50525-2-31, IEC60227-3
Conductor: IEC60228, BS EN60228
Flame retardancy: IEC60332-1, BS EN60332-1
Installation Reference
Minimum bending radius (mm): 6 x cable overall diameter
Maximum pulling tension: 50N/mm²
