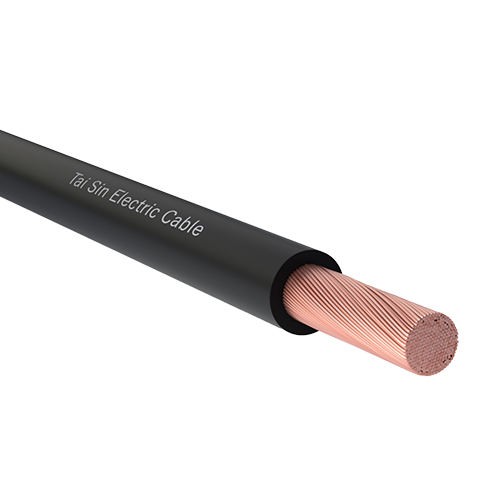

Cross-Linked LSZH Insulated Non-Sheathed Cable, 450/750V (600/1000V*), BS EN50525-3-41
Construction
Conductor: Plain annealed flexible copper, Class 5 stranded circular
Insulation: Cross-linked Low Smoke Zero Halogen (LSZH) Compound with Anti-Termite Characteristic and UV Resistant
Insulation colour: Black / Other colour upon request
Electrical Characteristics
Operating voltage, U0/U: 450/750V (600/1000V*)
Operating temperature: -15°C to +90°C
Final short circuit temperature: 250°C
Test Voltage: 3.5kV for 5 minutes
Reference Standards
Design Specification: BS EN50525-3-41
Conductor: IEC60228, BS EN60228
Flame retardancy: IEC60332-3-24, BS EN60332-3-24
Low Smoke Zero Halogen: IEC61034-2, BS EN61034-2, IEC60754-1, IEC60754-2, BS EN60754-1, BS EN60754-2
Installation Reference
Minimum bending radius (mm): 8 x cable overall diameter
Maximum pulling tension: 15N/mm²
