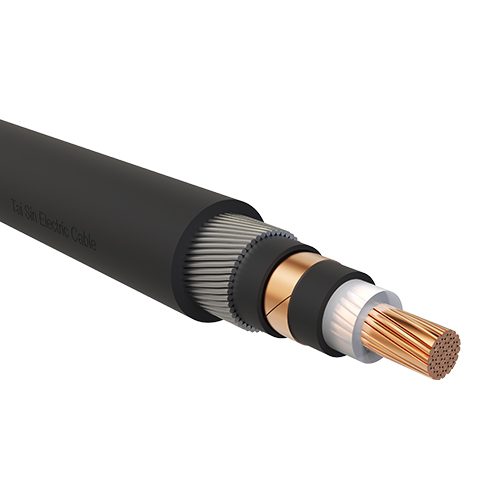

FRT-XCAH, CU / XLPE / LSZH / CT / LSZH / AWA / SWA / LSZH, Single core, XLPE insulated, LSZH bedded, Copper tape screened, LSZH separation sheath, Aluminium wire armoured, LSZH sheathed, 600/1000V cable - compliant with IEC60502-1
Construction
Conductor: Plain annealed copper, Class 2, Stranded circular or compacted
Insulation: Cross-linked Polyethylene (XLPE) compound
Insulation colour: Natural
Bedding: Low-Smoke Zero-Halogen (LSZH) compound
Bedding colour: Black
Screen: Copper tape
Separation sheath: Low-Smoke Zero-Halogen (LSZH) compound
Separation sheath colour: Black
Armour: Aluminium Wire Armoured (AWA)
Outer sheath: Low-Smoke Zero-Halogen (LSZH) compound with anti-termite characteristics and UV resistant
Outer sheath colour: Black
Electrical Characteristics
Operating voltage, U0/U: 600/1000V
Operating temperature: -15°C to +90°C
Final short circuit temperature: 250°C
Test Voltage: 3.5kV for 5 minutes
Reference Standards
Design specification: IEC60502-1
Conductor: IEC60228, BS EN60228
Flame retardancy: IEC60332-3-22, BS EN60332-3-22
Low-Smoke Zero-Halogen: IEC61034-2, BS EN61034-2, IEC60754-1, IEC60754-2, BS EN60754-1, BS EN60754-2
Installation Reference
Minimum bending radius (mm): 8 x cable overall diameter
Maximum pulling tension: 50N/mm²
