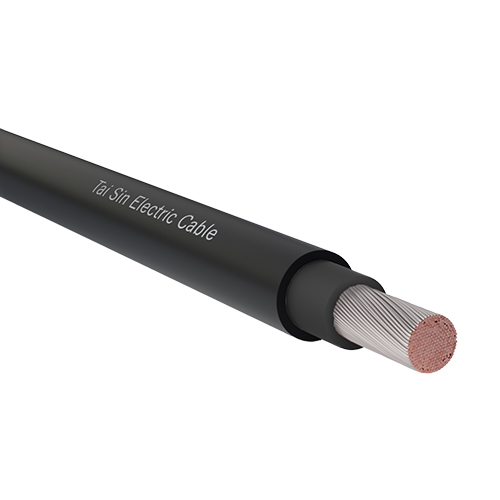

FRT-HH-PV (H1Z2Z2-K), TCU / HFFR / HFFR , Single core

FRT-HH-PV (H1Z2Z2-K), TCU / HFFR / HFFR, Single core, HFFR Insulated, HFFR Sheathed Photovoltaic Cable, Rated DC voltage 1500V between Conductor and Conductor & Earth

Construction

Conductor: Tinned Annealed Flexible Copper Wire, Class 5
Insulation: Cross-linked Polyolefin (HFFR)
Insulation colour: Black / Natural
Outer sheath: Cross-linked Polyolefin (HFFR) with Anti-Termite Characteristic and UV Resistant
Outer sheath colour: Black or Red / Other colour upon request
Optional: Copper Wire Braided Screen; Fire Resistant option upon request

Electrical Characteristics

Operating voltage: 1500Vdc Conductor / Conductor & Earth
Operating temperature: -15°C to +90°C; Max. temp. at conductor +120ºC
Final short circuit temperature: 250°C
Test Voltage: 6.5kV for 5 minutes

Reference Standards

Design specification: BS EN50618, IEC62930
Conductor: IEC60228, BS EN60228
Flame retardancy: IEC60332-3-24, BS EN60332-3-24
Low-Smoke Zero-Halogen: IEC61034-2, BS EN61034-2, IEC60754-1, IEC60754-2, BS EN60754-1, BS EN60754-2
